1: K2 will only activate the PD function when the screen lights up by pressing the lightning button

2: When pressing the OK button to turn on the screen, PD is not supported, and entering PD spoofing or protocol detection will result in a black screen or repeated restarts

3: TYPE-C data plug K2 female socket can be flipped over and plugged in again if the screen does not light up after pressing the lightning button

4: The HID interface on the side of K2 is connected to a computer and cannot detect the protocol

5: K2 testing protocol will restart multiple times, which is a normal phenomenon. Do not connect the HID port for power supply during protocol testing

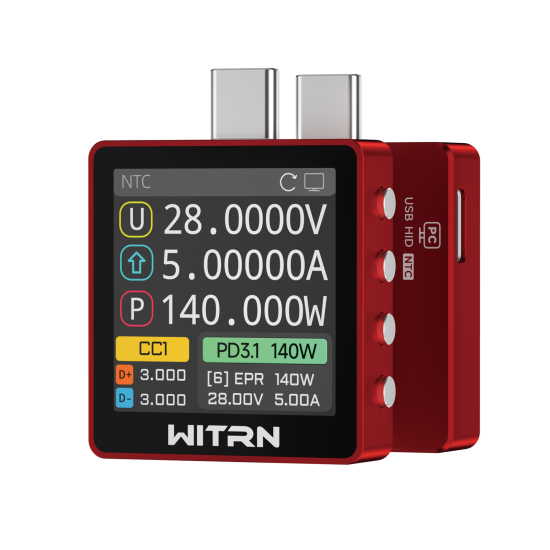

1. Introduction to K2

RTOS real-time operating system+WIUI human-computer interaction system

*32-bit high-speed CPU

*Independent 16 bit high-precision ADC sampling chip

*Independent electronic hard drive, capacity recording, power-off storage

*High speed sampling, fast refresh rate

*24P straight through high current and high conductivity copper USB-C terminal

1.1 K2 Characteristics

Ω PD3.1 supports 28V EPR AVS deception

Multiple fast charging protocol detection and deception

Unified Four Dimensional WIOS+WIUI+PC

Ω 240MHz ultra high speed M4F 32-bit CPU with FPU hardware acceleration unit

Ω Independent ADC sampling+on-chip 2MHz high-speed AD

The Ω spectrum analysis function can simultaneously track the charging head ripple and its spectral characteristics

Ω Built in capacity calculation function

Ω Built in gravity sensor supports automatic screen rotation

Measurement voltage: DC 3.3~48V (K2-237)

Measurement voltage: DC 3.3~36V (K2-226)

Voltage resolution: 0.0001V

Capacity record: 0~99999Ah

Measurement current: 6A (10A short-term peak)

Current resolution: 0.0001A (bidirectional current detection)

Capacity record: 0~99999Wh

6A can work for a long time

10A is not recommended to exceed 2 minutes

CPU: ARM M4F 240MHz high-speed 32-bit with FPU hardware acceleration unit

Display: 1.54-inch color IPS LCD screen resolution: 240 * 240 (wide-angle screen)

Sensor: 3-axis gravity sensor

Core ADC: 16 bit independent ADC chip (INA226:36V, INA237:48V)

High speed sampling: 2Mhz high-speed on-chip ADC

Sampling resistor: low resistance sampling resistor (high side sampling) to prevent common ground interference

Main interface: 24P USB-C male/female socket direct connection

External sensor: Temperature measurement NTC-20 ℃~+120 ℃ (TYPE-C interface special temperature probe)

Storage medium: EEPROM wear balance

Firmware upgrade method: USB HID without driver (independent USB-C HID interface)

Computer online curve: HID upper computer (USB-C HID interface without driver)

VIP Code: Unique Serial Number

High speed waveform sampling: 2MHz Max

Ripple analysis: simultaneously lock and display frequency data and ripple value

Exterior dimensions: approximately 36.0 * 33.7 * 9.3 * mm (excluding USB-C male connector)
